AIM Evo4S the Powerful & Flexible Datalogger

EVO4S is the evolution of the well known EVO4.

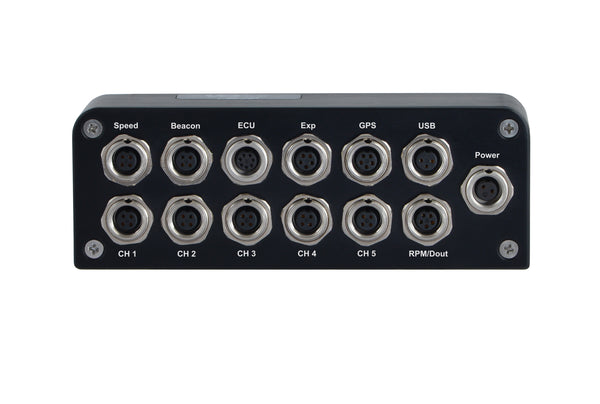

It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and with the new powerful Race Studio 3 software.

EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 module included in the kit.

And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.

Many sensors can be connected to EVO4S via:

5 analog channels with configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV inputs or thermocouple input, used to sample data coming from temperature, pressure, suspension and other kinds of sensors.

2 speed inputs, which allow to monitor the different wheels behavior.

1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).

A built-in inertial platform lets you have the most powerful system for understanding oversteering, understeering, banking, etc.

EVO4S features a LOW SIDE type (switch to ground) digital output. You can configure it in order to turn it on or off depending on the value of the analog or digital inputs, ECU values, expansion values, GPS information or math channels.

(Optional - Please refer to AIM Accessories)

Add expansion modules via our built-in CAN bus:

Channel Expansion
It permits to add 4 0-5Volt analog channels.

LCU-One Lambda Controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

Memory Module
The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

... and all sensors you may need to improve the EVO5 performance.

To visualize in real time all the data, EVO5 can be connected to the visor GS-Dash or to the Formula Steering Wheel 3, our professional steering wheel for Formula and Sports cars.

Data recorded by EVO5 can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.
