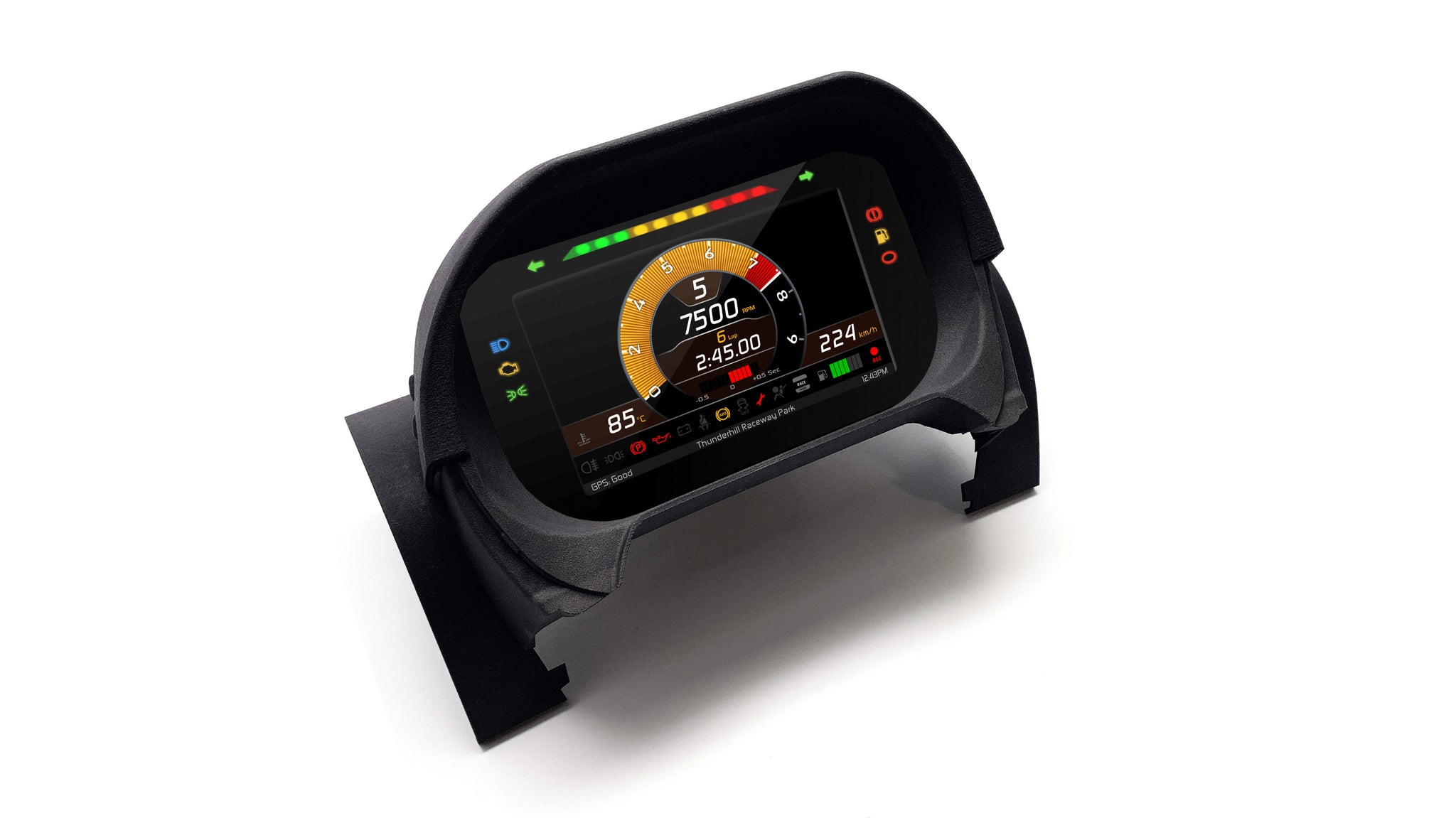

AIM MXP 1.3* - The 6" colour TFT dash logger

MXP offers 50% more display area than the 5'' MXS display, in a similar dimension.
The dash logger has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.

A wide range of data sources

MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.

Freely configurable pages

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
Swapping between pages can be managed pushing one or two pushbuttons.

High contrast TFT display

A high contrast TFT display identifies MXP at the first glance.
An ambient light sensor keeps the backlight at optimum brightness levels.

Flexible alarms & custom street icons

MXP features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors.
Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.

Two digital outputs

MXP features two digital outputs.
The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.
They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.

Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.

Expand the system, according to your needs

Using the built-in CAN bus, you can add expansion modules to the MXP to increment the performance and the data acquired:

GPS08 Module

Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub

It adds 4 K thermocouples.

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

Connection example

These are only some of the items that can be added to our MXP for incrementing the performance and the data acquired:

CAN output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Race Studio 3, the almighty software

Race Studio 3 is the heart of your MXP, managing all your activities related to:

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

AiM LearnFast E-training Series Check out how to use Race Studio 3 Configuration: Part 1 - Part 2

Analysis

With Race Studio 3 you can also analyse all data recorded by MXP and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

Wi-Fi connectivity

Makes it even more convenient to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it  from your van up to 50 meters away.
