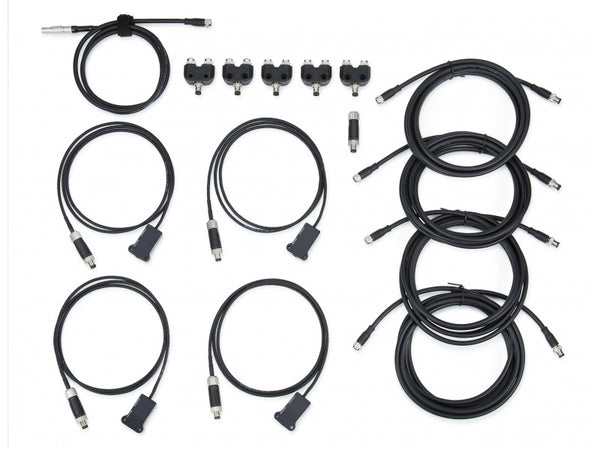

Racelogic Tyre Temperature Sensors & Wiring Loom
$3,295.00

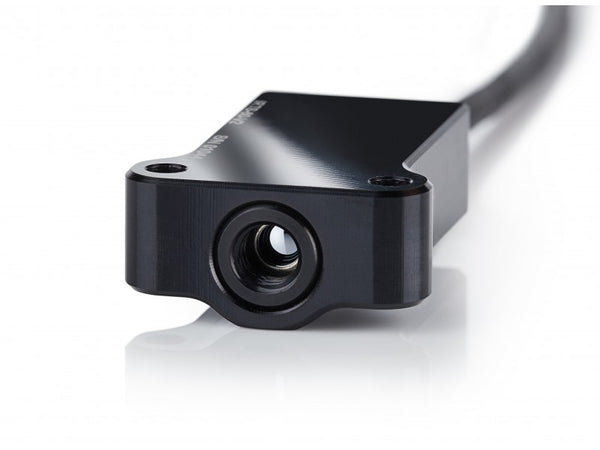

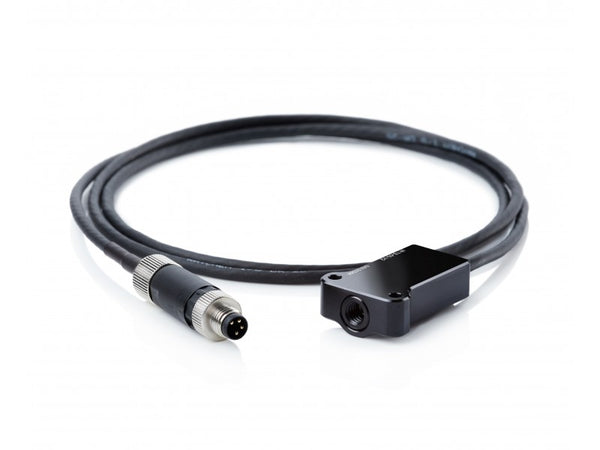

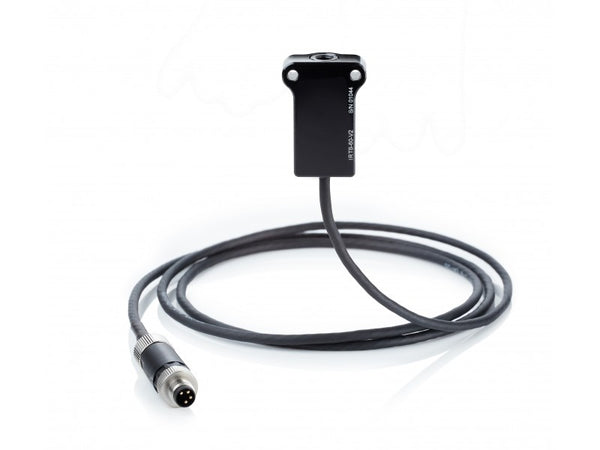

The sensors have been specifically designed to measure the highly transient surface temperature of a tyre, providing invaluable information for chassis tuning and driver development.
Each sensor can measure up to 16 temperature points on an object with surface temperatures ranging from -20°C to 300°C and come in either 60˚or 120˚field of view options allowing you to log tyre temperatures throughout a session when used with a VBOX Video HD2 system. This kit is also available in a bundle with the VBOX Touch Display to be able to show the data in real time inside the cockpit.
Please see the datasheet and configuration guide for more information.
**Please note, that a CAN Gateway is required to log data from the tyre temperature sensors and a vehicle CAN bus at the same time. If you have any questions, please email info@grid-motorsport.com
